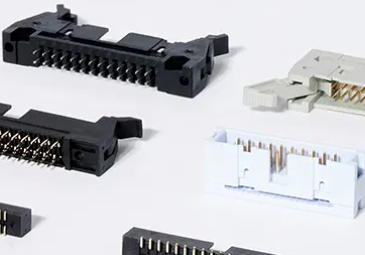

Ejector Headers >>> Overview

》》》View All Pin Headers

Key Features

• Standardized board-to-board and PCB-to-cable interconnect solution

• Available in multiple pitches, row configurations, and pin counts

• Supports through-hole (THT) and surface-mount (SMT) mounting styles

• Compatible with standard female headers and sockets

• Suitable for both signal and low-to-medium power transmission

Available Configurations

Pin headers can be customized to meet different application requirements:

• Pitch options: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.0mm, 3.96mm, 5.08mm

• Row configurations: Single row, dual row, multi-row

• Mounting types: Through-hole, SMT, right-angle, vertical

• Pin length: Customized tail length and mating length available

• Plating options: Gold flash, 1µ”, 3µ”, selective gold over nickel

• Insulator materials: LCP, PBT, PA6T, PA9T (UL94 V-0)

Electrical & Mechanical Performance

• Stable contact resistance and insulation resistance

• Rated current depending on pitch and pin size

• Designed for wave soldering and reflow soldering processes

• Lead-free and RoHS compliant

Detailed electrical ratings and dimensional drawings are available on individual product pages.

Typical Applications

• Industrial control systems

• Communication and networking equipment

• Power supply and control boards

• Consumer electronics and appliances

• Embedded modules and development boards

Why Choose Our Pin Headers

• Consistent quality control and stable mass production

• Flexible customization for pin length, plating, and materials

• Suitable for both small-batch prototypes and large-volume production

• Long-term supply capability for industrial projects

Please browse the following pin header product series to find the most suitable solution for your application.
