Female Header Connectors

  • Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U type
  • Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U type
  • Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U type
Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U typeFemale header connector,2.0X4.3mm, 2X25Pos,180 PBT U typeFemale header connector,2.0X4.3mm, 2X25Pos,180 PBT U type

Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U type

  • P/N: FH-D18
  • OEM: Yes
  • Sample: Yes
  • Small qty: Support
  • INQUIRY

We offers a complete line of headers and sockets in pitches from 0.200" to 1.00" in both through hole, STM and press fit technology. Many female headers are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!

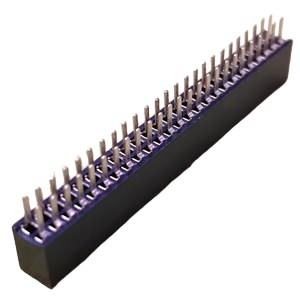

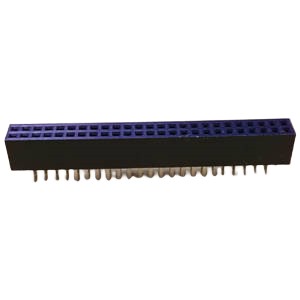

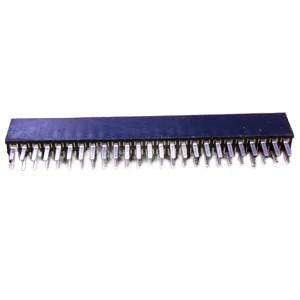

Female header connector,2.0X4.3mm, 2X25Pos,180 PBT U type

Specification:

Contact material: Brass

Contact plating : Au or Sn over Ni

Insulator material: Polyester(UL94V-0)

Standard: PA6T +30% G.F

Current rating: 0.75AMP

Withstanding voltage:500V AC/minute

Contact resistance: 30mΩ Max

Insulation resistance:1000mΩ MinOperation temperature:-40ºC to + 105ºC
