TYPE C Connectors

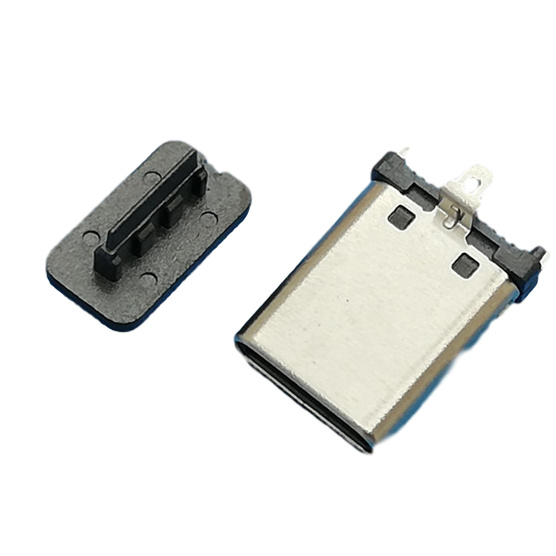

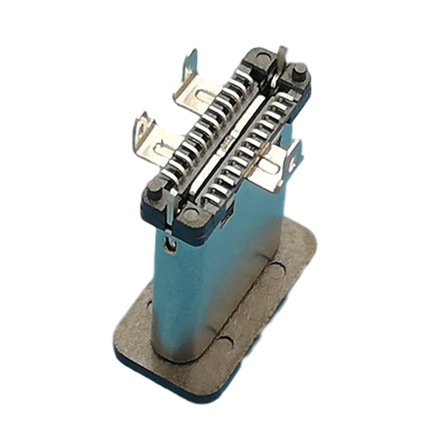

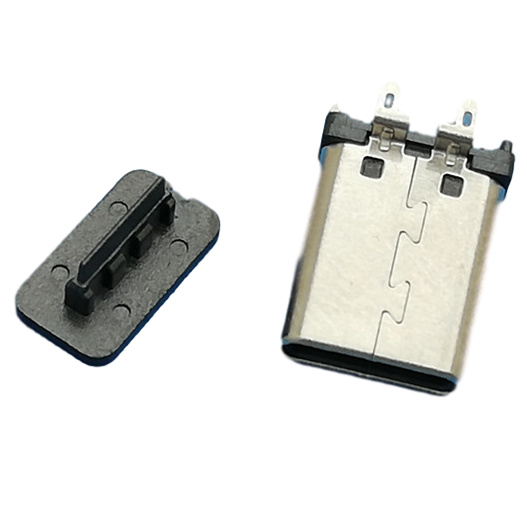

Type C Connector, Three Upright Feet with Male Head, Feet Terminal 1.75mm

Type C Connector, Three Upright Feet with Male Head, Feet Terminal 1.75mm

P/N: TYPE C 05
OEM: Yes
Sample: Yes
Small qty: Support
INQUIRY

Many models are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!

Type C Connector, Three Upright Feet with Male Head, Feet Terminal 1.75mm

1.Material:
Shell,SUS
Housing, PBT/A46 (colors can be customized).
    Contact, C2680 /C5191
2. Standard date:
rating current: 1.0A  Max.
3. Electrical:
voltage rating:30V AC(rms)Max.
   Dielectric withstanding voltage 100v(AC) for 1 Minute
   Contact resistance:50MΩ Max.
   Insulation resistance:100MΩ Min.
4.Temperature range:-25°C-80°C
