Gold Plating Thickness for Connectors: What Do 1μ

Introduction

Gold plating is widely used on electrical connector contacts to improve contact reliability, corrosion resistance, and mating performance.

However, when specifying a connector, customers often ask:

What does 1μ", 3μ", 5μ", or 10μ" gold plating actually mean?

Does thicker gold always mean better performance?

Which plating thickness is suitable for a standard electronic connector?

When should you choose gold flash instead of a thicker gold layer?

The answer depends on the connector design, contact area, mating frequency, electrical requirements, and operating environment.

In this guide, we explain the most common gold plating specifications used for connectors and how to select the appropriate option for your application.

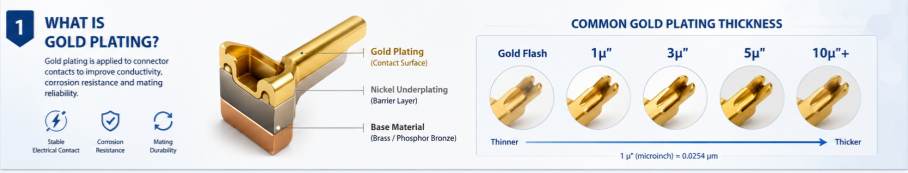

1. What Does Gold Plating Thickness Mean?

Gold plating thickness is commonly specified in microinches (μ") in the connector industry.

For example:

1μ" = 1 microinch

3μ" = 3 microinches

5μ" = 5 microinches

10μ" = 10 microinches

One microinch is equal to approximately 0.0254 μm.

Therefore:

Gold Plating Approx. Thickness

1μ" 0.0254 μm

3μ" 0.0762 μm

5μ" 0.127 μm

10μ" 0.254 μm

15μ" 0.381 μm

30μ" 0.762 μm

It is important to distinguish microinch (μ") from micrometer (μm). They are different units.

When discussing connector plating, customers and manufacturers should clearly specify the unit to avoid misunderstandings.

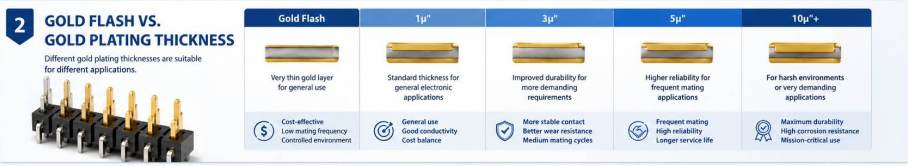

2. Gold Flash vs. 1μ", 3μ", 5μ" and 10μ"

Not all gold-plated connectors use the same gold thickness.

Common specifications include gold flash, 1μ", 3μ", 5μ", 10μ", and higher specifications.

Gold Flash

Gold flash refers to a very thin gold coating used mainly to provide a gold contact surface while controlling material cost.

It may be suitable for applications where:

Mating frequency is relatively low

The connector operates in a controlled environment

Extremely high wear resistance is not required

Cost optimization is important

Gold flash is commonly found on standard electronic connectors.

1μ" Gold Plating

1μ" gold plating provides a thicker gold layer than a typical flash specification.

It can be considered for general electronic applications where improved contact protection is required while maintaining a relatively economical design.

3μ" Gold Plating

3μ" gold plating provides additional gold thickness and may be selected when the connector requires improved contact durability or reliability.

It is commonly considered for applications with more demanding electrical or mechanical requirements.

5μ" Gold Plating

5μ" gold plating provides a further increase in gold thickness and may be suitable for applications involving more frequent mating or higher contact reliability requirements.

10μ" Gold Plating and Above

Higher gold thicknesses such as 10μ", 15μ", or 30μ" may be specified for applications requiring higher durability, more demanding environmental performance, or specific customer standards.

However, a higher gold thickness is not automatically the best choice for every connector.

The correct specification should always be determined according to the actual application.

3. Does Thicker Gold Plating Always Mean Better Performance?

Not necessarily.

Gold thickness is only one factor affecting connector performance.

The overall performance of a connector contact can also depend on:

Contact material

Nickel underplating

Gold plating process

Plating area

Contact geometry

Contact force

Mating and unmating frequency

Operating temperature

Humidity and environmental conditions

Required mechanical life

For example, increasing gold thickness may improve resistance to wear, but if the contact design, base material, or plating process is not properly controlled, simply adding more gold does not guarantee better overall connector performance.

This is why connector plating should be specified as part of the complete contact system rather than considered independently.

4. How Does Gold Plating Affect Connector Performance?

Gold is widely used on connector contact surfaces because of its excellent resistance to oxidation and corrosion.

Depending on the connector design and application, an appropriate gold plating specification can help provide:

Stable Electrical Contact

A properly specified contact surface helps maintain stable electrical performance during the service life of the connector.

Corrosion Resistance

Gold provides excellent resistance to oxidation compared with many base metals.

This is particularly valuable for contact surfaces exposed to environmental conditions that may affect long-term reliability.

Improved Mating Durability

For connectors that are repeatedly mated and unmated, the contact surface experiences mechanical wear.

A suitable plating specification can help improve the durability of the contact interface.

Long-Term Reliability

For industrial, communication, control, and other demanding applications, the correct contact plating specification can contribute to consistent connector performance over time.

5. How Do You Choose the Right Gold Plating Thickness?

There is no single gold thickness that is suitable for every application.

A practical approach is to consider the following factors.

1. Mating Frequency

How often will the connector be inserted and removed?

For low-frequency mating applications, a lower gold specification may be sufficient.

For applications involving frequent mating cycles, a thicker gold specification may be more appropriate.

2. Operating Environment

Consider whether the connector will operate in:

Normal indoor environments

High humidity

Industrial environments

High-temperature conditions

Areas exposed to contaminants or corrosive conditions

More demanding environments may require a more carefully specified contact plating system.

3. Electrical Requirements

Consider:

Contact resistance

Signal integrity

Current level

Voltage

Long-term electrical stability

The required plating specification should be evaluated together with the connector's contact design and material.

4. Mechanical Requirements

For connectors subject to frequent insertion and extraction, mechanical durability becomes especially important.

In such cases, gold plating thickness should be considered together with contact force, contact geometry, and mating-cycle requirements.

5. Cost Requirements

Gold is a relatively expensive material.

Using a thicker gold layer than necessary can significantly increase connector cost, especially for large-volume production.

Therefore, the objective should not be:

Use the thickest gold plating available.

Instead, it should be:

Select the appropriate gold plating specification for the actual application.

6. Where Is Gold Plating Used in Connectors?

Gold plating can be specified for many types of electrical connectors, including:

Pin Headers

Female Headers

Board-to-Board Connectors

DIN 41612 Connectors

D-Sub Connectors

Pogo Pin Connectors

High-speed connectors

Custom connectors

For example, ZYSZ supports different plating options for pin header configurations, including gold flash, 1μ", 3μ", and selective gold over nickel.

DIN 41612 connector configurations can also be specified with different contact plating options depending on the product and application requirements.

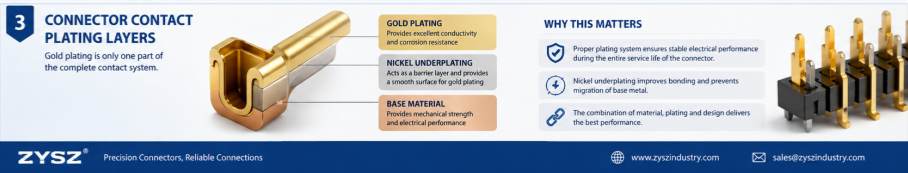

7. Gold Plating Is Only One Part of the Contact System

When evaluating connector plating, it is important to look beyond the gold thickness alone.

A connector contact may typically include:

Base Material → Nickel Underplating → Gold Contact Plating

Each layer serves a different purpose.

The base material provides the mechanical and electrical foundation of the contact.

The nickel layer can act as a barrier layer and provide a suitable surface for the gold plating.

The gold layer provides the contact surface with its desired electrical and environmental characteristics.

Therefore, two connectors with the same nominal gold thickness may not necessarily provide identical performance if their materials and plating processes are different.

8. What Information Should You Provide When Ordering Gold-Plated Connectors?

When requesting a quotation for a gold-plated connector, providing detailed technical information can help the manufacturer recommend the appropriate specification.

We recommend providing:

Connector type

Pitch

Number of positions

Contact material

Gold plating thickness

Plating area

Required mating cycles

Operating environment

Electrical requirements

Mechanical drawing or specification, if available

If the required gold thickness is not yet determined, you can also provide the application requirements and expected mating conditions.

A connector manufacturer can then evaluate the requirements and recommend a suitable configuration.

9. Why Gold Plating Specification Matters in Connector Selection

Connector selection is not simply about choosing a connector with the lowest price.

A suitable connector should balance:

Electrical Performance + Mechanical Durability + Environmental Requirements + Manufacturing Cost

Gold plating is one of the important parameters in this balance.

Selecting too little plating for a demanding application may affect long-term contact reliability.

On the other hand, specifying unnecessarily thick gold plating may increase the cost without providing a meaningful benefit for the actual application.

The best solution is therefore to match the plating specification to the application's real requirements.

Conclusion

Gold plating thickness is an important specification when selecting electrical connectors.

Gold flash, 1μ", 3μ", 5μ", 10μ", and higher specifications are not simply different levels of "better" or "worse." Each option can be suitable for different applications depending on mating frequency, environmental conditions, electrical requirements, mechanical durability, and cost considerations.

For reliable connector performance, gold thickness should also be evaluated together with the contact material, nickel underplating, plating process, and contact design.

If you are unsure which plating specification is suitable for your connector application, providing the drawing, application details, quantity, mating requirements, and electrical specifications can help the manufacturer recommend an appropriate solution.
