Custom Pogo Pin Specification

High Current Custom Pogo Pin Specification

1. Product Name

Custom High Current Charging Pogo Pin

2. Product Requirements

2.1 Dimensions

Dimensions and structure can be customized according to customer drawings, or suitable solutions can be recommended by our engineering team.

2.2 Materials

Component

Material

3. Technical Specifications

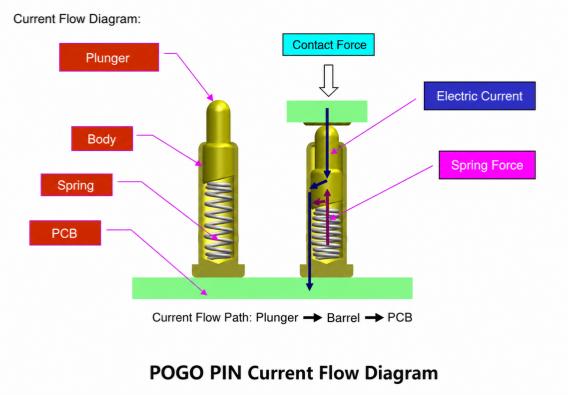

3.1 Current Rating

2A to 10A continuous current, depending on internal structure design and gold plating thickness.

3.2 Operating Voltage

Less than 12V DC @ 25°C

3.3 Mechanical Life

More than 50,000 mating cycles

3.4 Operating Environment

• Temperature: -20°C ~ +75°C

• Humidity: 90% RH Max.

3.5 Storage Environment

• Temperature: -20°C ~ +85°C

• Humidity: 90% RH Max.

4. Electrical Performance

4.1 Contact Resistance

< 50mΩ Initial at working stroke

4.2 Insulation Resistance

100MΩ after 1 minute at 500V DC or AC

4.3 Dielectric Withstanding Voltage

500VAC for 1 minute

Leakage Current: ≤0.3mA

5. Mechanical Performance

5.1 Spring Force

Customized according to customer requirements.

5.2 Durability

Spring force remains within specification after 10,000 cycles.

5.3 Vibration Resistance

10~500Hz vibration frequency

Amplitude: 1.2mm

Duration: 15 minutes

No interruption exceeding 1μs

Contact Resistance < 500mΩ

6. Environmental Performance

6.1 Thermal Shock

100 cycles

-40°C / 30 min ↔ +85°C / 30 min

Contact Resistance < 50mΩ

No visible damage

6.2 Humidity Resistance

90~95% RH

60°C for 500 hours

Insulation Resistance > 100MΩ

Contact Resistance < 50mΩ

No visible damage

6.3 Salt Spray Test

5% salt solution

48 hours

No corrosion

6.4 Solderability

250±5°C for 1 second

Solder coverage >95%

7. Product Advantages

1. Long service life, capable of over 100,000 mating cycles.

2. No tooling cost required, ideal for customized applications.

3. Spring force can be precisely adjusted according to customer requirements.

4. Suitable for SMT, through-hole, and hand-soldering assembly methods.

5. Low inductance design for superior high-frequency performance.

6. Fully compliant with RoHS and Halogen-Free requirements.

8. Manufacturing Process

Precision Machining

Plungers and barrels are manufactured by automatic CNC lathes. In-process inspections are performed every two hours, and 100% dimensional inspection is completed before plating.

Electroplating

Vacuum plating process with strict control of nickel and gold plating thickness. Thickness reports are available upon request.

Automatic Assembly

Pogo pins are assembled using self-developed automatic riveting equipment, ensuring excellent consistency and high assembly precision.

Final Inspection

100% inspection of dimensions, spring force, and contact resistance can be provided for high-end applications.

9. Applications

• Smart watches

• Smart bracelets

• GPS pet trackers

• Magnetic charging cables

• Laptops

• Tablet PCs

• PDAs

• Handheld terminals

• Medical equipment

• Wireless communication devices

• Data communication systems

• Telecommunications equipment

• Industrial automation equipment

• Aerospace and defense electronics

• Automotive electronics

• Vehicle navigation systems

• Test and measurement equipment

• Printers

• Computers

• Cameras

• Audio & video equipment

• Bluetooth earphones

10. Packaging Options

• PE Bag Packaging

• Vacuum Packaging

• SMT Carrier Tape Packaging

11. Shipping Methods

• Express Courier (DHL, UPS, FedEx, TNT)

• Door-to-Door Delivery
