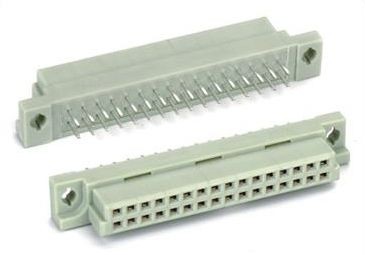

This DIN 41612 Type B Female Straight connector features a 2×32 (64-position) layout with a 2.54mm pitch, designed for reliable board-to-board connections in Eurocard backplane systems.
Key Features:
DIN 41612 Type B configuration
2.54mm pitch, 2-row layout
64 Positions (2 × 32)
Through-hole (THT) termination
Tin plated contacts (gold plating optional)
Insulator material: PBT / PA6T optional
Suitable for Eurocard and backplane systems
Custom configurations available
Specifications:
| Item | Specifications |
| Product Type: | DIN 41612 |
| Connector Type: | Type B |
| Gender: | Female |
| Pitch: | 2.54mm |
| Number of Rows: | 2 |
| Number of Positions: | 64 Pos |
| Termination Style: | Solder Pin |
| Mounting Type: | Straight |
| Contact Plating: | Gold flash/3u"/5u"/10u"/15u"/30u" |
| Insulator Material: | PBT / PA6T (optional) |
| Flammability Rating: | UL94 V-0 (optional) |
| Contact Material: | Brass |
| Operating Temperature: | -55°C to +125°C |
| Application: | Board-to-board / Eurocard backplane |
| Customization: | Pin length, plating, and configuration available |
| Packaging: | Tray / Tube / Bulk (upon request) |

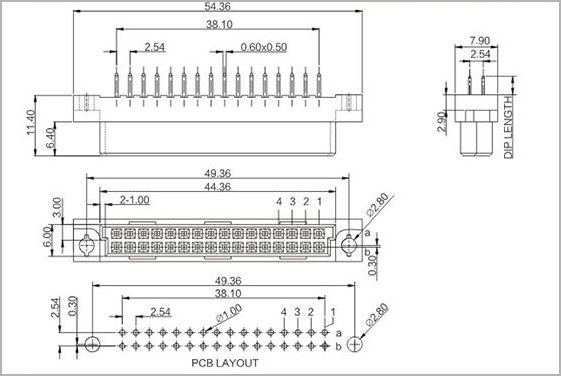

Mechanical Drawing & PCB Layout:
Note: Detailed drawings is available upon request.
When requesting a quote, please specify:
Connector type (A/B/C), gender (male/female), number of contacts, termination style, contact plating, and pin length.
Samples are available for confirmation before mass production.
