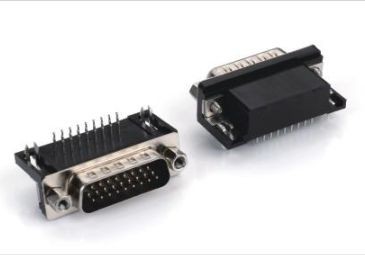

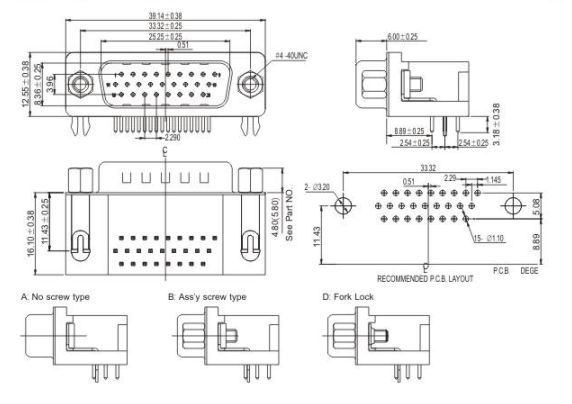

HRM141-26P Stamped contact

Key sizes:

Many products are available that are not listed in the catalog pages. If you do not see what you want, please contact us.

Specification:

1. Product Type

• Connector Family: D-SUB (D-Subminiature)

• Standard: IEC / MIL-DTL-24308 compatible

2. Materials

• Contact Material: Brass

• Contact Type: Stamped Contact

• Insulator Material: PBT or PBT + GF, UL 94V-0

• Shell Material: Steel

• Shell Finish: Nickel Plated (Tin optional)

3. Electrical Characteristics

• Current Rating: 3.0 A per contact

• Voltage Rating: 250 V AC / DC

• Contact Resistance: ≤ 30 mΩ

• Insulation Resistance: ≥ 1000 MΩ

• Withstanding Voltage: 1000 V AC (1 minute)

4. Environmental Characteristics

• Operating Temperature: −55°C to +85°C

• Storage Temperature: −55°C to +105°C

• Compliance: RoHS & REACH compliant

5. Reliability

• Mating Cycles: ≥ 500 cycles

• Termination Strength: Meets IEC requirements

******************************************

(Please provide the following details for quotation or drawing confirmation)

1. Number of Positions

• e.g. 9 / 15 / 25 / 37 Pins

2. Gender

• Male (Plug)

• Female (Receptacle)

3. Mounting / Termination Type

• PCB Mount (Through-Hole / Right-Angle or Vertical)

• Cable Mount (Solder Cup / Crimp)

4. Mounting Orientation

• Vertical

• Right-Angle

5. Quantity / Annual Demand

• Sample / Trial order / Mass production quantity

With the above information, we can quote directly or prepare a drawing for confirmation.
