2.54*2.54mm(0.1inch*0.1inch) Box Header Straight Dip Type

Many products are available that are not listed in the catalog pages. If you do not see what you want, please contact us.

• Pitch: 1.00mm

• Positions: 2–40 (custom available)

• Options: plating / pin length / packaging

Typical Applications

• Industrial control boards & PLC modules

• Power supplies & converters

• Communication equipment

• Test & measurement fixtures

• DIY / prototyping / general electronics




Key Features

• Standard 1.00mm pitch for broad compatibility

• Straight, through-hole solder pins for strong mechanical retention

• Customizable positions (2–40) and pin length options

• Multiple plating choices: Gold flash / selective gold / tin (upon request)

• Stable housing material options with UL94 V-0 (optional)

Specifications:

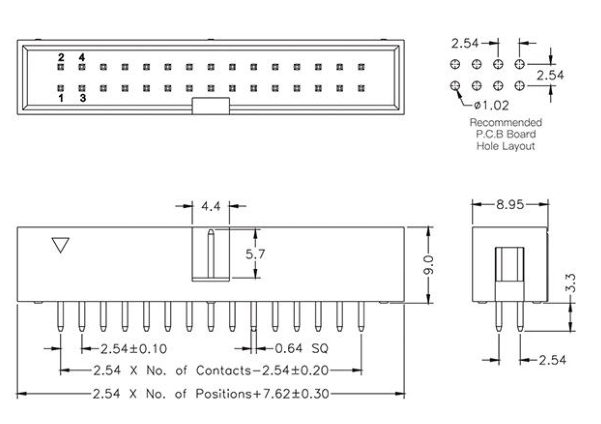

Mechanical Drawing & PCB Layout:

Note: Detailed drawings is available upon request.

Ordering Information:

How to Order / Custom Options
Please share below details for fast quotation:

1. Pitch (1.00 / 2.54 / 2.00 / 1.27mm)

2. Rows & Positions (e.g., 1×10, 1×20)

3. Pin length (above / below insulator)

4. Plating (gold flash / selective gold / tin)

5. Packaging (bulk / tube / tape & reel)

6. Drawing / footprint (if you have)

Quality & Delivery

• ISO 9001 quality management (available on request)

• Samples available for approval before mass production

• Typical lead time: 7–15 days (depends on quantity & plating)
