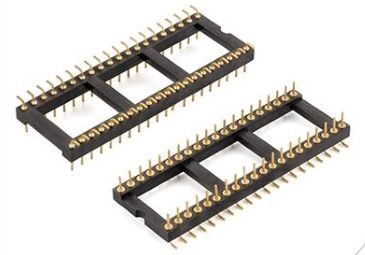

Dual-in-line pin headers 2.54mm Open frame Surface mount

Many products are available that are not listed in the catalog pages. If you do not see what you want, please contact us.

Specifications:

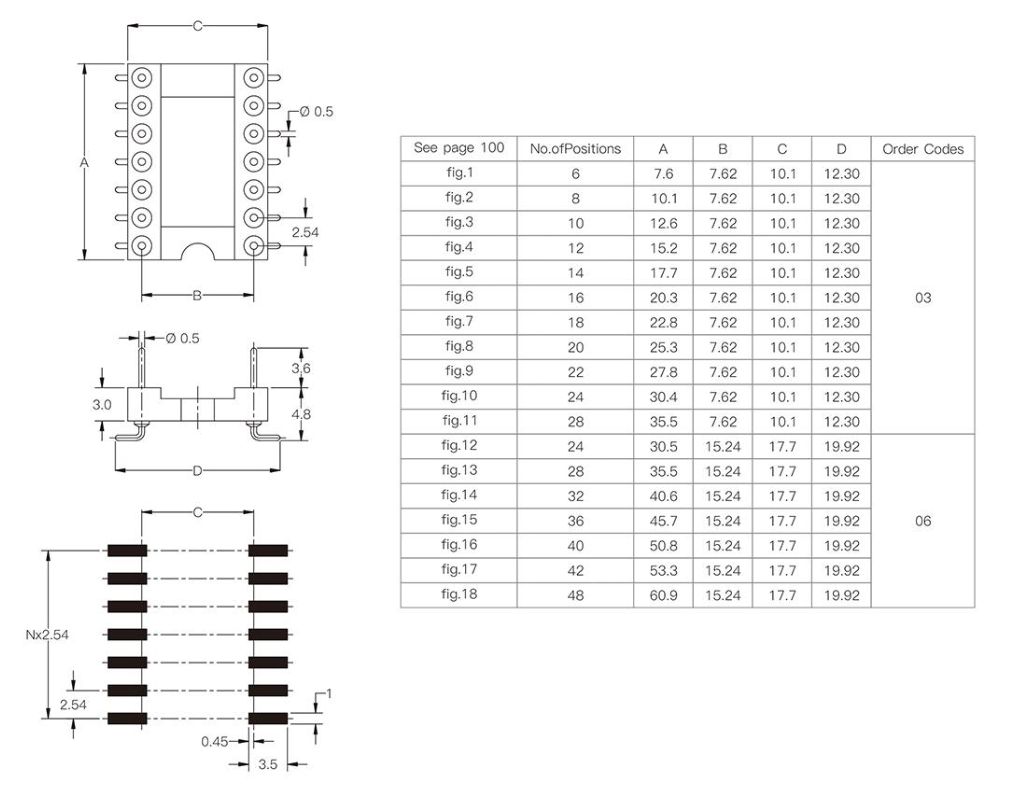

Mechanical Drawing & PCB Layout:

Note: Detailed drawings is available upon request.

Ordering Information:

How to Order / Custom Options
Please share below details for fast quotation:

1. Pitch (1.00 / 2.54 / 2.00 / 1.27mm)

2. Rows & Positions (e.g., 1×10, 1×20)

3. Pin length (above / below insulator)

4. Plating (gold flash / selective gold / tin)

5. Packaging (bulk / tube / tape & reel)

6. Drawing / footprint (if you have)

Quality & Delivery

• ISO 9001 quality management (available on request)

• Samples available for approval before mass production

• Typical lead time: 7–15 days (depends on quantity & plating)
