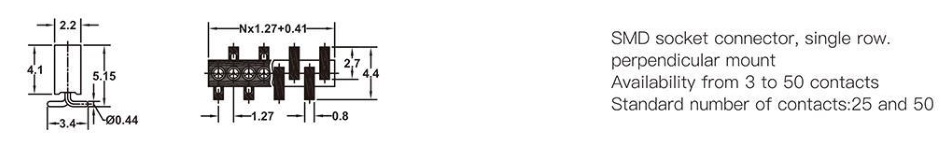

SMD socket connector,single row.
perpendicular mout
Availability from 3 to 50 contacts
Standard number of contacts:25 and 50
SMD socket connector,single row.
perpendicular mout
Availability from 3 to 50 contacts
Standard number of contacts:25 and 50
| Specification | |
Rated Current | 1.0A AC/DC |
Rated voltage | 100VC/DC |
Contact resistance: | 10m ohm.max |
| Insulation resistance | 5000Mohohm.min |
| Operating Temperature | -40℃ to +105℃ |
Withstanding Voltage | Black glass filled polyester |
PPS + 30% G.F (UL94V-0) | |
| Insulator Material | Sleeve:Brass CuZn36Pb3(C36000) Contact Clip(3finger) |
| Beryllium copper (C17200) Mating Pin φ : 0.35 to 0.50mm | |
