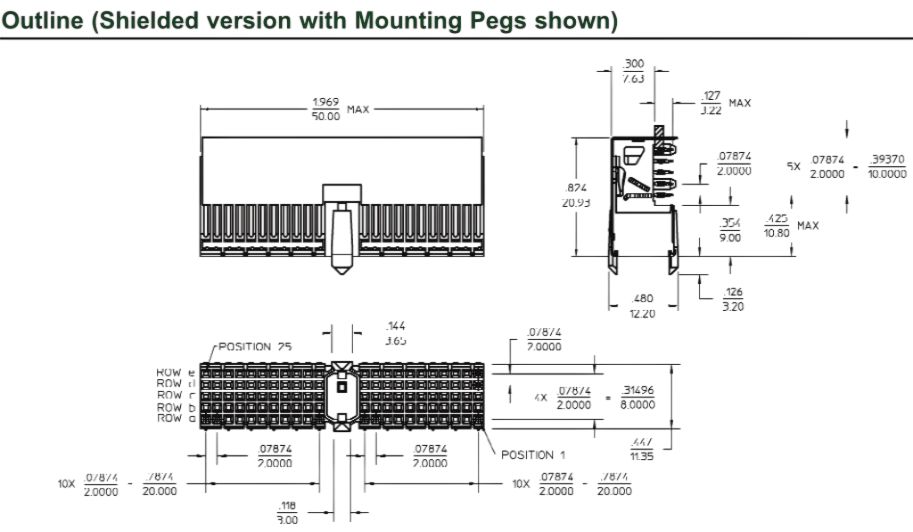

2mm Hard Metric Style A Socket

•  110 signal contacts

•  44 ground shield contacts

- Available with or without preassembled top shield

- Optional bottom shield sold separately

•  Multi-purpose center

- Polarized pre- alignment guide posts

- Accepts optional code keys

•  Optional location pegs for PCB mounting

•  50mm length

Unshielded:

No pegs:    SZ6A0AE01A0AF

With pegs: SZ6A1AE01A0AF

Shielded:

No pegs:    SZ6A0AE01A1AF

With pegs: SZ6A1AE01A1AF

1.1 Main Features

• Compliant with IEC 61076-4

• Contact pitch: 2.0 mm

• Termination type: Press-fit

• RoHS compliant

1.2 Electrical and Mechanical Characteristics

• Rated Voltage (Contact-to-Contact): 500 V RMS

• Rated Current:

• 1.5 A at 20°C

• 1.0 A at 70°C (all signal contacts loaded)

• Dielectric Withstanding Voltage: 750 V RMS

• Contact Resistance: ≤ 20 mΩ

• Insulation Resistance: ≥ 10⁴ MΩ

• Mechanical Life:

• Performance Level 1: 500 mating cycles

• Performance Level 2: 250 mating cycles

• Mating Force: 0.75 N/pin Max.

• Unmating Force: 0.15 N/pin Min.

1.3 Environmental Characteristics

• Operating Temperature and Humidity:
  -55°C to +125°C / 5% to 85% RH

• Salt Spray Resistance:
  48 hours

• Vibration:

• Frequency Range: 10–2000 Hz

• Acceleration: 200 m/s²

• Shock:

• Half-sine wave

• Acceleration: 500 m/s²

1.4 Materials

• Contacts:

• Material: Copper Alloy

• Finish: Ni/Pd/Au (Nickel/Palladium/Gold)

• Insulator:

• Material: LCP (Liquid Crystal Polymer)

• Flammability Rating: UL94V-0
