Straight pin connector, solder tail.
single row
Availability from 2 to 50 contacts
Standard number of contacts:25 and 50

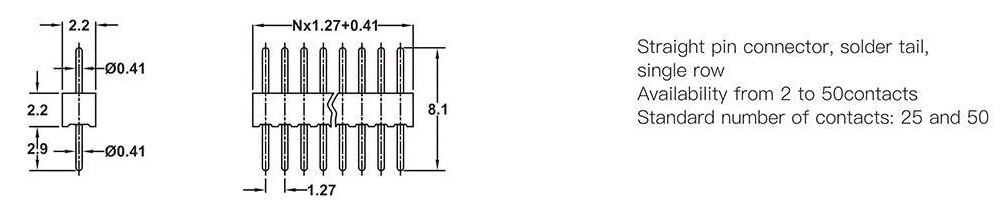

Straight pin connector, solder tail, single row
Availability from 2 to 50 contacts
Standard number of contacts: 25 and 50
| Specification | |
Rated Current | 1.0A AC/DC |
Dielectric Strength | Min. 500 VRMS |
Contact resistance: | ≤20mΩ/ohm.max |
Mechanical Lifespan | Min. 500 cydles |
Withstanding Voltage | Black glass filled polyester |
PPS + 30% G.F (UL94V-0) | |
| Insulator Material | Sleeve:Brass CuZn36Pb3(C36000) |
| Mating Pin φ : 0.41mm | |
