Socket Connectors 1.27mm Singl row/Double row Surface mount

Many products are available that are not listed in the catalog pages. If you do not see what you want, please contact us.

Specifications:

Mechanical Drawing & PCB Layout:

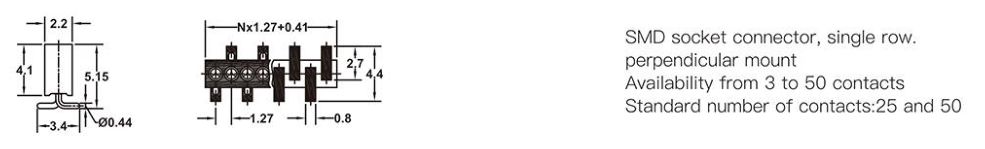

Type 1:

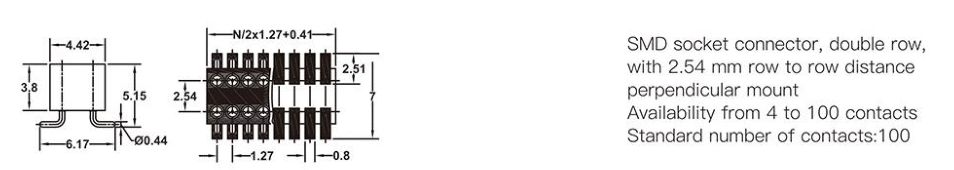

Type 2:

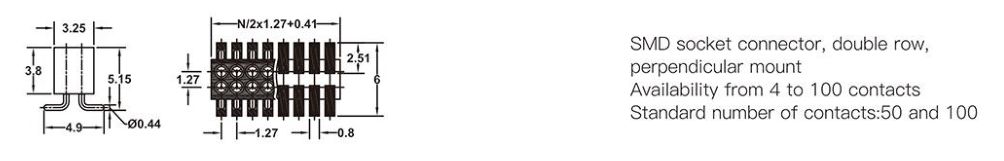

Type 3:

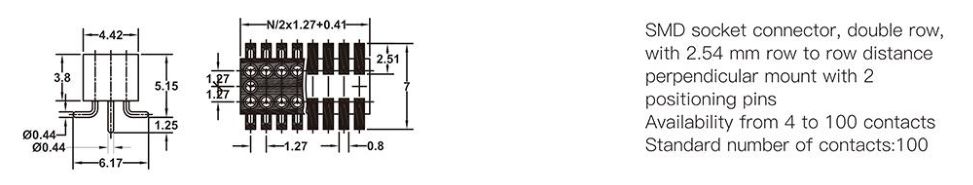

Type 4:

Note: Detailed drawings is available upon request.

Ordering Information:

How to Order / Custom Options
Please share below details for fast quotation:

1. Pitch (1.00 / 2.54 / 2.00 / 1.27mm)

2. Rows & Positions (e.g., 1×10, 1×20)

3. Pin length (above / below insulator)

4. Plating (gold flash / selective gold / tin)

5. Packaging (bulk / tube / tape & reel)

6. Drawing / footprint (if you have)

Quality & Delivery

• ISO 9001 quality management (available on request)

• Samples available for approval before mass production

• Typical lead time: 7–15 days (depends on quantity & plating)
