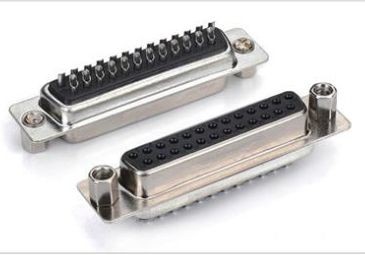

DBF111-25P D-Sub Female Solder Cup Connector

Many products are available that are not listed in the catalog pages. If you do not see what you want, please contact us.

Materials and Finish

Insulator: PBT + 30% GF, UL 94V-0
Shell: Steel, Ni or Sn finished
Contact Material: Brass, selective gold finished
Riveted Insert: Brass material, tin finished
With #4-40 threaded assembly(depending on part number)

Electrical Characteristics

Current Rating: 3.0 A DC
Voltage Rating: 250 V DC
Contact Resistance: 30 milliohms max.
Dielectric Withstanding Voltage: 1000 V AC min.
Insulation Resistance: 1000 megohms min.

Environmental

Operating Temperature: -55°C to +85°C
Storage Temperature: -55°C to +105°C

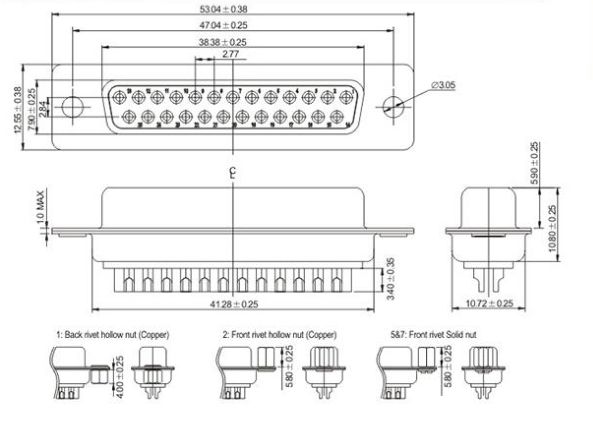

Specifications drawing:

Note: Detailed drawings is available upon request.
