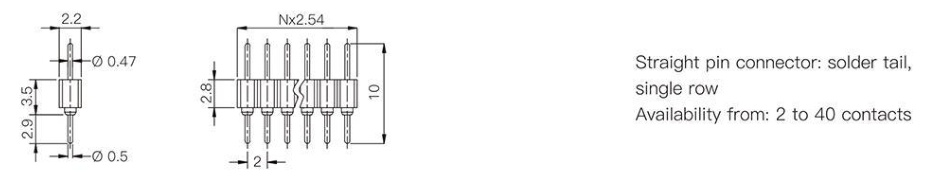

Straight pin connector: solder tail,
single row
Availability from: 2 to 40 contacts
| Specification | |
Rated Current | 1.0A AC/DC |
Rated voltage | 100VC/DC |
Contact resistance: | 10m ohm.max |
| Insulation resistance | 5000 ohm.min |
| Voltage resistance value | 1000V AC for one minute |
| Operating Temperature | -40℃ to +105℃ |
Withstanding Voltage | High Temp. Plastic (UL94V-0) |
| Insulator Material | Gold/Tin Plated(Plug) Selective Gold Plated(Socket) |
