Specifications:
Item | Specifications |
Rated current: | 1.0A AC/DC |
| Rated voltage: | 100V AC/DC |
| Contact resistance: | 10m ohm.max |
| Insulation resistance: | 5000M ohm min. |
| Voltage resistance value: | 1000V AC for one minute |
Operating Temperature: | -40℃～+105℃ |
Withstanding voltage: | Hight Temp. Plastic (UL94V-0) |
| Insulator Material: | Gold/Tin Plated (Plug) Selective Gold Plated (Socket) |

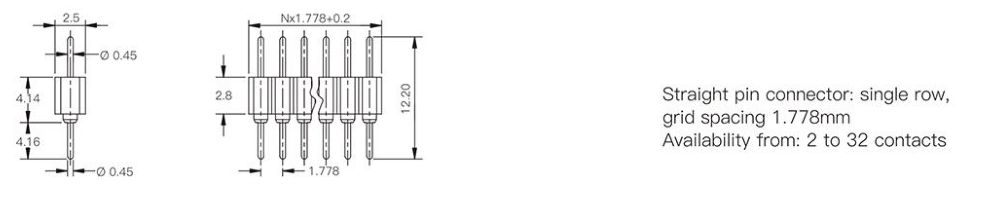

Mechanical Drawing & PCB Layout:
Type 1:
Note: Detailed drawings is available upon request.
How to Order / Custom Options
Please share below details for fast quotation:
Pitch (1.00 / 2.54 / 2.00 / 1.27mm)
Rows & Positions (e.g., 1×10, 1×20)
Pin length (above / below insulator)
Plating (gold flash / selective gold / tin)
Packaging (bulk / tube / tape & reel)
Drawing / footprint (if you have)
Quality & Delivery
ISO 9001 quality management (available on request)
Samples available for approval before mass production
Typical lead time: 7–15 days (depends on quantity & plating)
