2mm Hard Metric& Futurebus

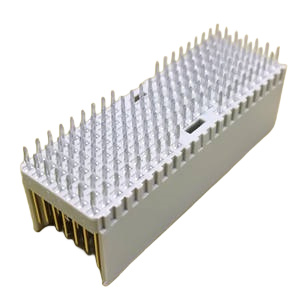

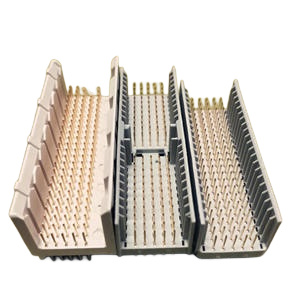

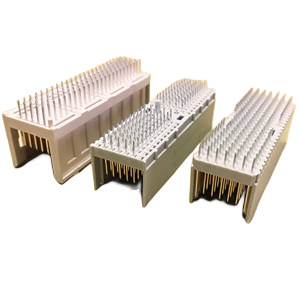

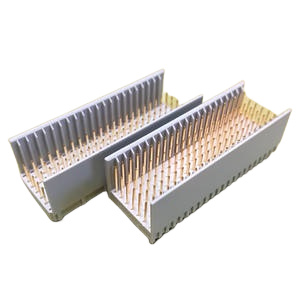

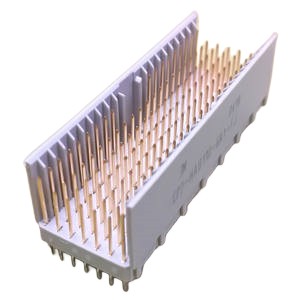

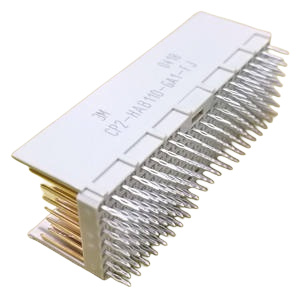

  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
  • 2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit
2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit

2.0mm Hard metric connector / Futurebus,7x18+4x5Male,Straight,Press Fit

  • P/N: FB-XXXX
  • OEM: Yes
  • Sample: Yes
  • Small qty: Support
  • INQUIRY

  • Furturebus connector/Edge card,connectors.
    • 2mm high density futurebus + male solder and press fit type
    • Available pin count from 30~240
    • Side by side stackable
    • Various solder tail length options
    • Push-fit peg.
  • RoHS Directive-compliant
  • Position: 60
  • Current rating: 1A
  • Contact resistance: 30mΩ maximum
  • Insulation resistance: 1000MΩ minimum
  • Withstanding voltage: 1000VAC
  • Operating temperature: -55ºC to +125ºC
  • Other hard metric connectors are available
We offers a complete line of 5+2 and 8+2 Hard Metric Connectors as well as a complete line of 4 and 5 row Futurebus Connectors.



More products are not list this page,If you don't see what you need, please contact us by biz@zyszindustry.com
